How to Build a Simple Grape Arbor
I purchased 3 new grapevines at the Spring Planting Festival at Baker Creek Heirloom Seeds this spring in Missouri. I had to get them in the ground and I knew where I wanted them but I didn’t have a grape arbor built yet, nor did I have the time to construct one at the time. So I, kind of, did a ‘step by step’ method over a couple months time.
Grape Arbor – Step 1
Before planting my grapes, our first step was to cement three short 4×4 posts in the ground where I would be placing my arbor. I planted my grapes in front of the posts as soon as the concrete was set up. I knew they would be fine like that until I had the opportunity to get to the construction.
Getting to the Construction – Step 2
When I finally had the time, I began by constructing posts to go over and attach to the 4×4’s in the ground. We had some leftover 1x lumber that I ripped down to the necessary dimensions on our table saw. I also had some 4×4 cut offs at my disposal (I love to use leftover materials!)
I constructed my posts by attaching the cut down 1x lumber around the 4×4 at one end (the top end). Next, I slid the open end over the 4x4s in the ground and screwed them off, making sure that all three posts were plumb.
Grape Arbor – Step 3
I connected my posts with horizontal runners, on which the grapevines will climb. There was not a specific dimension that I worked with for the runners. I based it off of the current size of my vines and ran with it. The main thing that I made sure of was that they were level. When they are out of level, it stands out like a sore thumb!
Step 4 – The Arbor
So, my panels were constructed but the arbor portion of this project still needed to go up. I opted to construct ‘rafters’ in place around the top portion of my posts. After choosing the appropriate angle (basically, just what I thought looked good) I measured and marked them. I cut my lumber to the proper length to cantilever the ‘roof’. Considering the design of my angled arbor roof, the cantilever is more sturdy.
I placed a board on the sides of each post and screwed them off very well. To finish off the constructed ‘rafters’, I added a 2×4 block in the ends. This was to stiffen the overall rafter as well as to give me a nailer for the front and back finish boards that I would be installing. I then installed the front and back ‘fascia’ boards to finish the rectangular structure and I topped it off with 2×2’s for the vines to grab hold of as they grow.
Step 5 – Finishing
With the structure complete, the last step was to seal the wood. I used a stain and seal product that we had also used for our decks and the walk around our pool. It helps to protect it from the weather and adds a nice color at the same time.
The Wrap Up
I absolutely love how my new grape arbor turned out. It was honestly a quick and easy project and my only expense in this one was the stain and seal. Everything else was leftover materials that were already here…and I LOVE that part of it! I am looking forward to seeing it when it is covered in beautiful grapevines!
NEVER MISS A THING!!
MORE WAYS TO CONNECT
We also, as a homesteading family, have a variety of blogs that might interest you. A Life on the Farm focuses on the more personal side of the homesteading life. We discuss subjects like family, parenting, relationships, homeschooling, cooking, canning and so much more.
Two Oaks Farm Talk concerns the more technical side of homesteading. We discuss subjects like gardening, food prep, and farm building and construction with lots of tutorials!
Farm Raised Family is basically a hub for everything under the Two Oaks Farmstead umbrella. You can learn a great deal about all parts of the farmstead there. The Farm Raised Family blog focuses on financial matters such as budgeting, saving, and more and on current events affecting families.
You can also have a more in depth look at all that we do by visiting our Two Oaks Farmstead YouTube Channel and be sure to subscribe so that you don’t miss a thing!
Farm Life and Freedom is the new podcast we are in the process of launching! It is going to be so much fun! You could also check in with our Farm Life and Freedom Youtube Channel.
Two Oaks Farmstead is the farm store… the one that holds the umbrella! Check us all out and join us, not only on our blogs and Farm Life and Freedom podcast but come join the fun on Facebook, Instagram, Twitter… wherever you get social!
Unable to see instructions or pictures. Entire post has a gray strip the whole way down. Waste of a pinned post.
Im terribly sorry you had an issue viewing this post. I’ve checked it in multiple browsers and it should be working well currently, however I have been having a great deal of problem with my host recently and currently making preparations to switch.
Hi! I love this arbor, but I can’t see the how-to photos either. I’ll check back!
Amy
Hi there! I’m so sorry for the trouble. I know how frustrating that is. I’ve dont some checking and the only thing I can figure is browser issues. When I look through chrome, it looks good, but safari gives me trouble. I don’t know if there is an actual fix for this issue but I will keep trying!
I love this! Do you have any updated pictures of how the grape vines look now?
Actually, I can take one…when the rain stops. But I can tell you that it basically starts over every year. With grapes, you have to prune aggressively every winter. And, being early spring, we’re just getting started again! Thank you for the comment!
Hi…now that we’re almost to July, any Arbor pics? thanks!!! (I love the cantilever design and am trying to guesstimate any small tweaks for my installation…for Maypop Passionfruit instead of Grapes). Thank you!

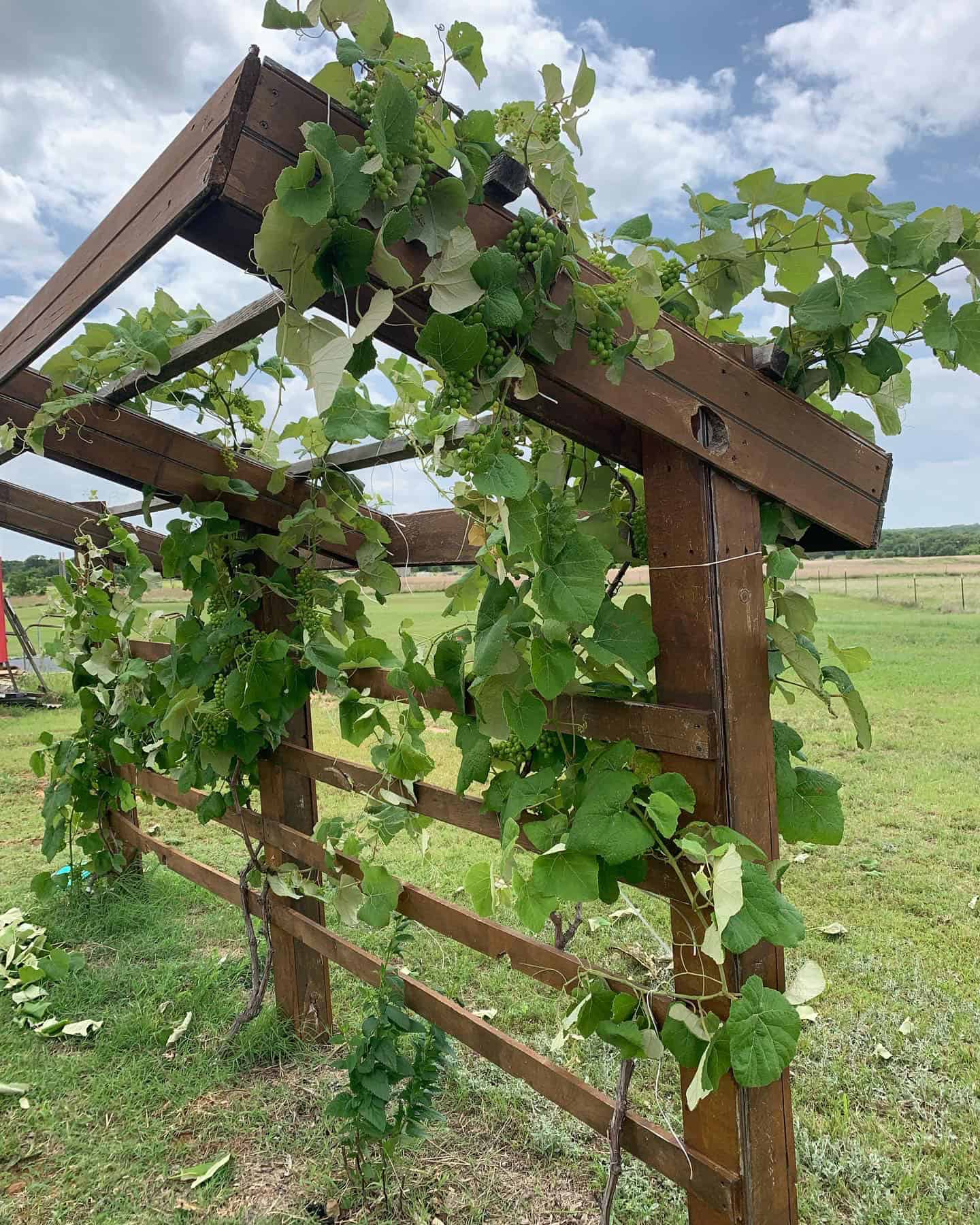

This pic was taken during the regular pruning. Holding up really well…sometimes the pruning gets out of control though. lol
